Specification

Length ~ 420 mm.
Width ~ 261 mm.
Gauge ~ 342 mm to 352mm.
Covering Width ~ 199 mm ± 2.0 mm.
Minimum roof pitch* ~ 22º
Number of tiles per m2 ~ 14.5.
Weight per tile ~ 4.4 kg.
Weight per m2 (min.) ~ 44.9 kg.
Battens required per m2 (min) ~ 2.9
Batten size (mm) ~ 50 x 25
Fixing ~ Clipped

Please consult Crest for roof pitches between 22º -10º

Close up (Hover cursor over image)

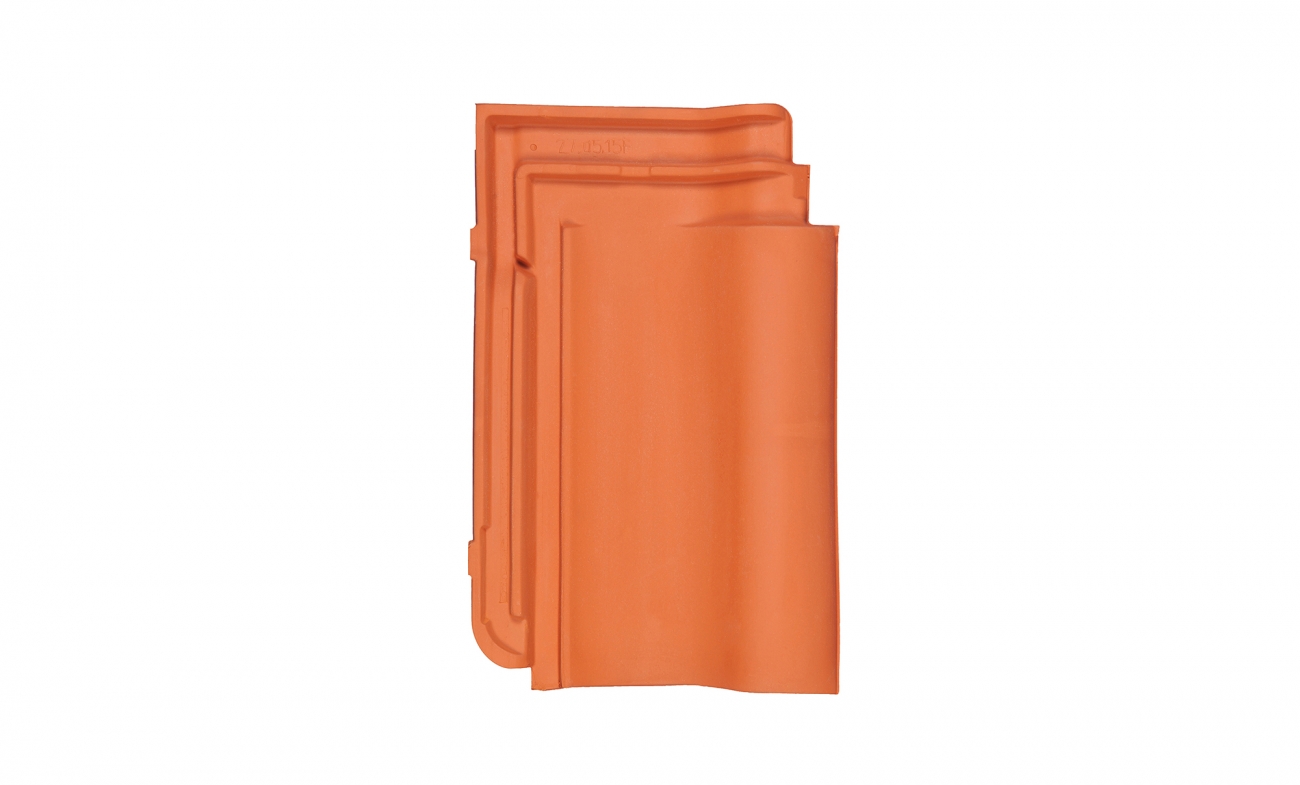

F15 Interlocking Clay Pantile

The F15 Interlocking Clay Pantile is engineered to the very highest of technical standards thus giving tilers the ability to provide the best possible finish and outstanding appearance. With a covering capacity of only 14.5 tiles or just 10 tiles per square metre, the F15 Interlocking Clay Pantile can be installed very economically.

High quality clay tiles
Minimum roof pitch 22º
Long term durability
Eco friendly
Low maintenance
Economical
Wide range of colours & fittings
Only 14.5 or 10 tiles per m2
Fast, easy & secure installation
Manufactured to comply with the requirements of EN1304 European Standard for Clay Roof Tiles

A wide choice of fittings are available for the F15 Interlocking Clay Pantile including:
