Specification

Length ~ 486 mm.
Width ~ 296 mm.
Gauge ~ 384 mm to 404mm.
Covering Width ~ 250 mm ± 1.0 mm.
Minimum low roof pitch ~ 10º
Number of tiles per m2 ~ 10.
Weight per tile ~ 4.6 kg.
Weight per m2 (min.) ~ 45.54 kg.
Battens required per m2 (min) ~ 2.5
Batten size (mm) ~ 50 x 25
Fixing ~ Clipped

For further details on Low Pitched Roofing Advice please download the PDF below.

Close up (Hover cursor over image)

G10 Flat Clay Roofing Tile

With a covering capacity of only 10 tiles per square metre, this allows the G10 Flat Clay Roofing Tile to be installed very economically. The G10 is an ideal tile for low-pitch roofs and can even be a cost-effective alternative to vertical cladding systems. Like all Crest tiles, the G10 flat clay roofing tile is available in a range of colours and finishes together with a wide range of fittings. For more info download the info card.

High-quality flat clay roofing tiles
Ideal for low-pitch roof
Minimum roof pitch 10º
Long term durability
Eco friendly
Low maintenance
Economical
Wide range of colours & fittings
Only 10 tiles per m2
Fast, easy & secure installation
Manufactured to comply with the requirements of EN1304 European Standard for Clay Roof Tiles

G10 range of colours and finishes ( see slide show above):

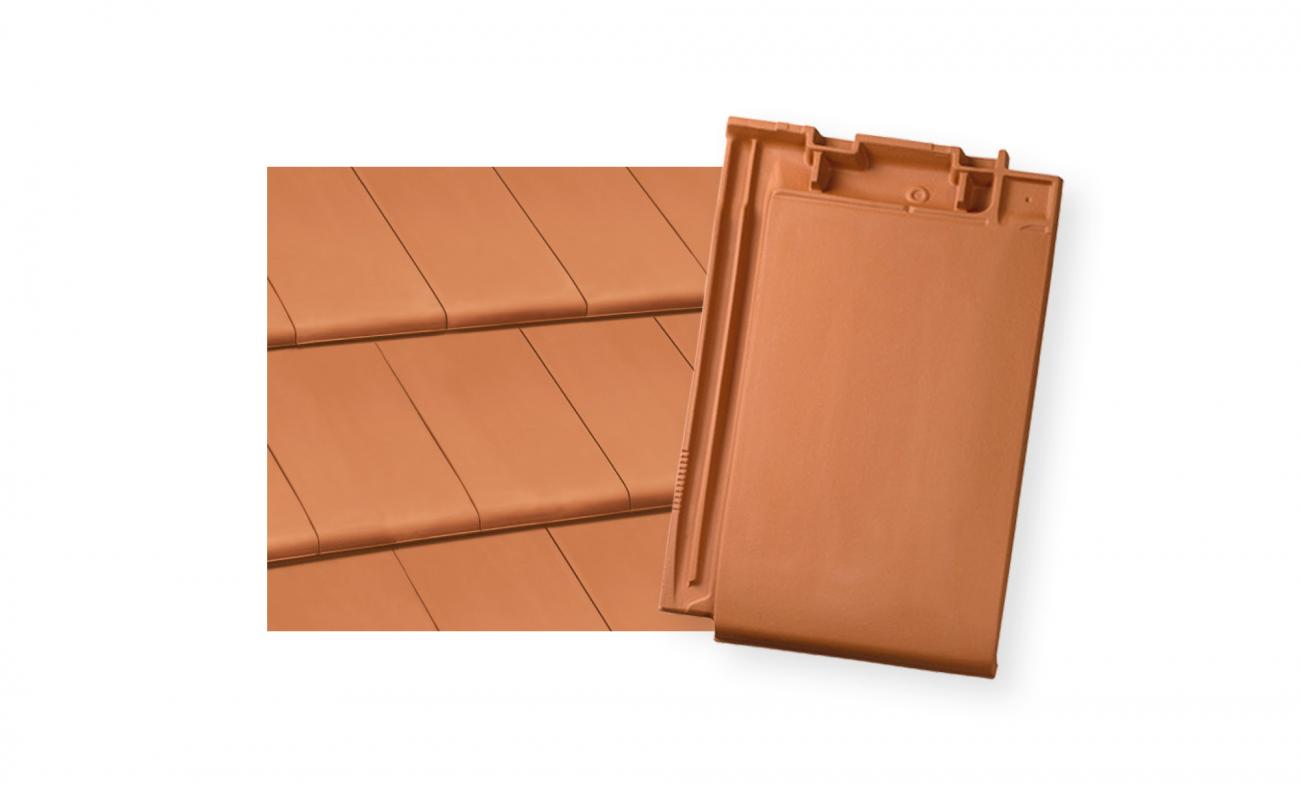

Natural Red ( 201)

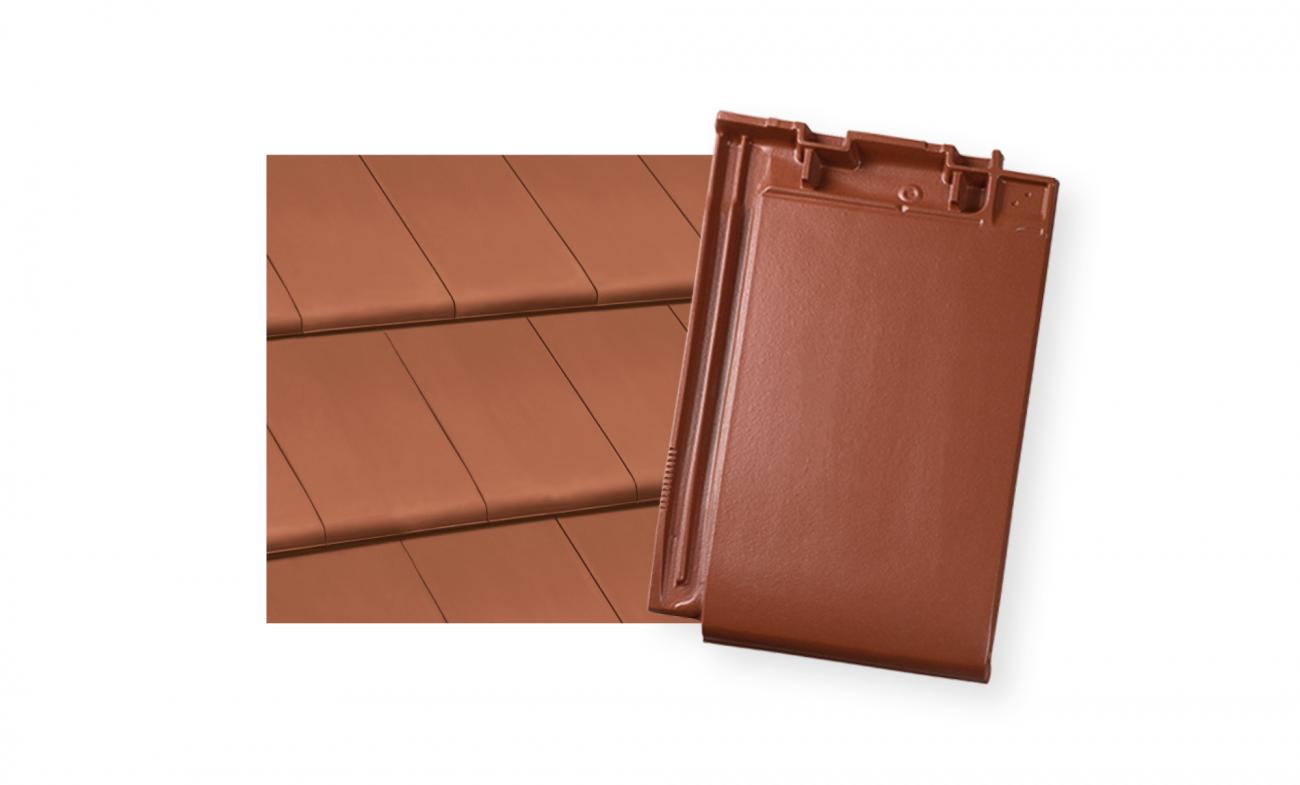

Red Brown (202)
Slate Grey (225)

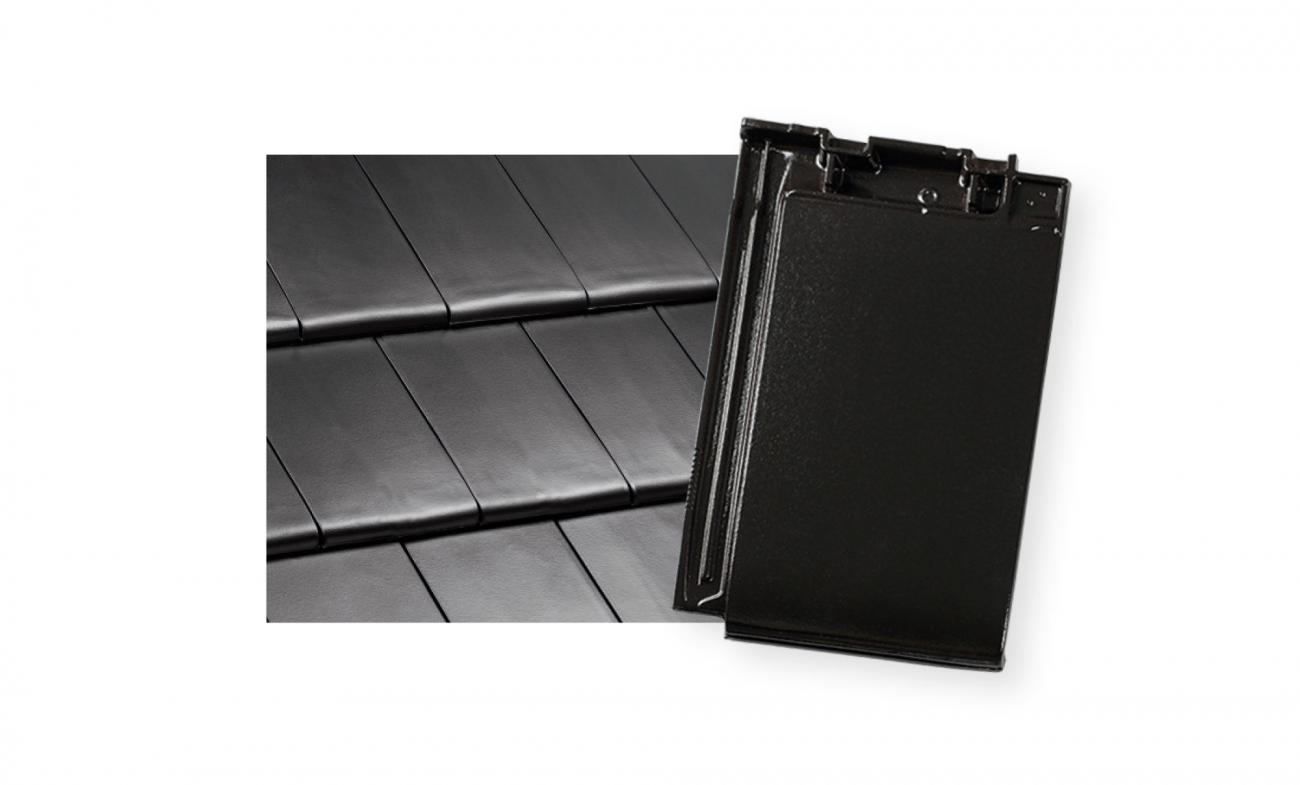

Black Gloss (218)

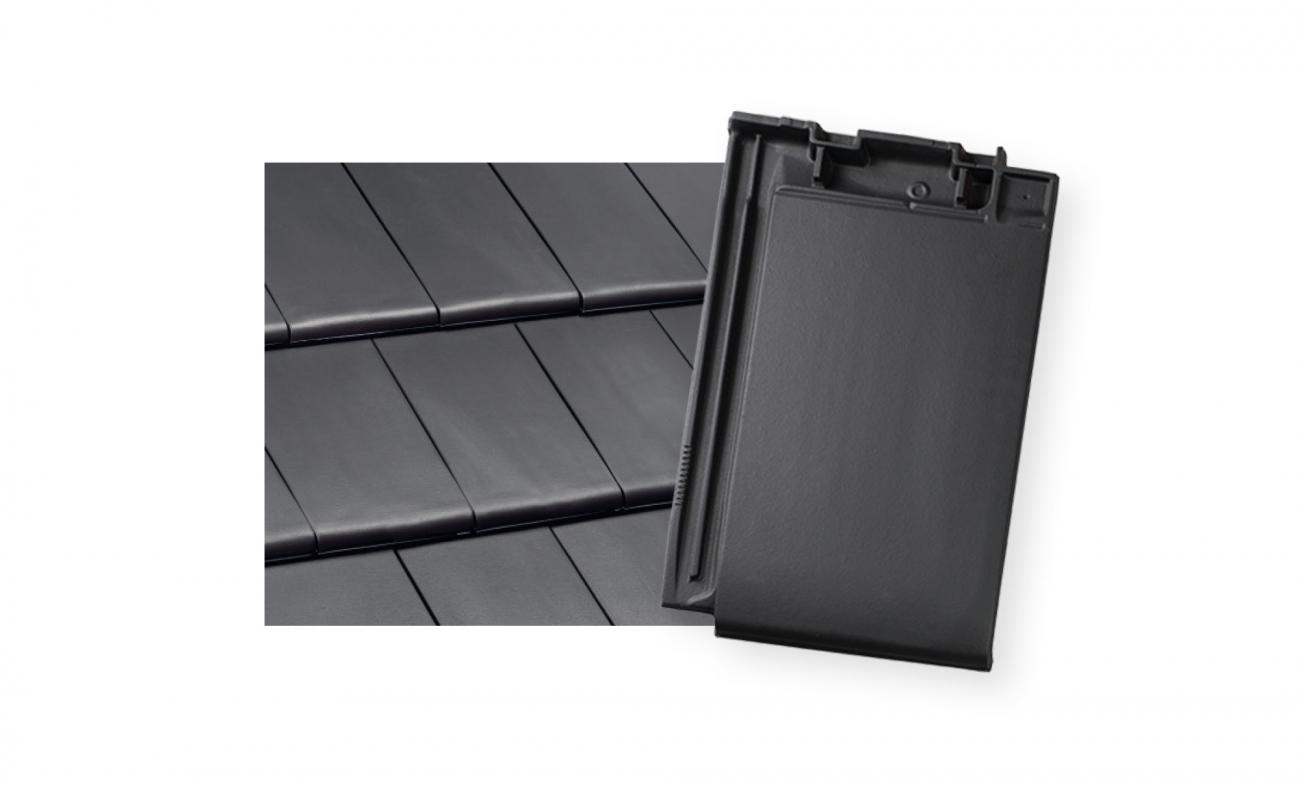

Matt Black (239)

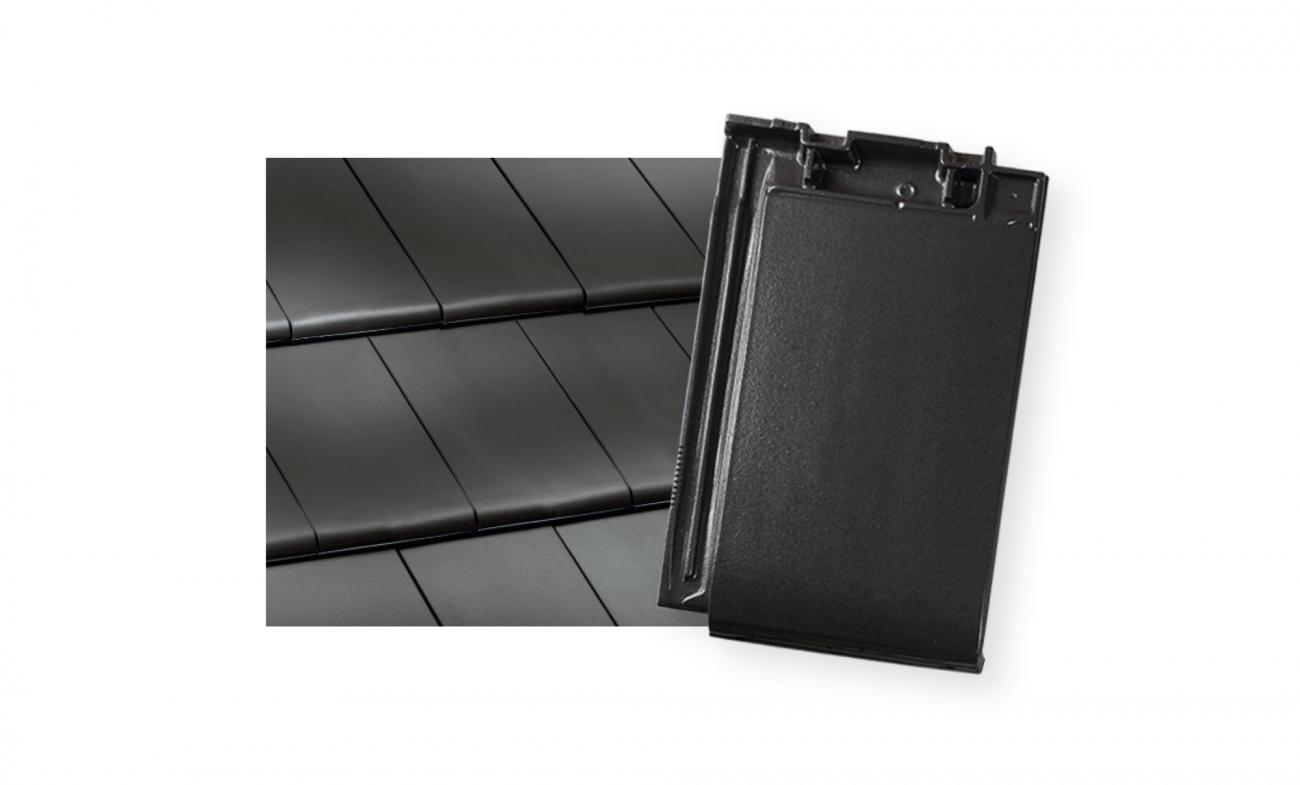

Black Engobe (232)

A wide choice of fittings is available including:

Air ventilation tile
Left-hand verge tile
Half tile (handed)
Tapered ridge tile (2.6 per m2)

Manufactured to comply with the requirements of EN1304 European Standard for Clay Roof Tiles

As the G10 is the perfect flat tile for low-pitch roofs, we recommend that these fixing practices are followed:
Low roof pitches 17˚-10˚

Use appropriate air and vapour permeable underlay, which does not require secondary roof ventilation.
Lay the roof underlay to the manufacturer’s instructions.
Lay G10 tiles broken bond.
Headlap minimum 100mm.
Maximum rafter length 6m.
All tiles are to be clipped with purpose-made tile clips, reference 409/215.
Left Hand Verge tiles are to be fixed with a 45mm tile fixing screw with a neoprene washer, also fix verge clips if mortar bedding the verge.
Roof perimeters including around roof windows must be securely fixed to BS 5534.

All areas around the roof perimeter and abutments must be properly finished as well as any areas around any ‘velux type’ windows. (These are the areas where potential problems will likely occur on a low roof pitch.)

G10 Stockists

North West Roofing Supplies, Manchester;
G10 tiles in Matt Black
0161 727 8812 - Assistant Branch Manager; Dec Soden.

SIG Telford, Shropshire; G10 tiles in Slate Grey
01952 641161 - Branch Manager; Dan Fleetwood

SIG Dudley, West Mids; G10 tiles in Matt Black and Natural Red
01384 472420 - Branch Manager; Peter Goodson.

Roofing Distribution UK, Grays, Essex;
G10 Tiles in Red Brown & Matt Black.
01375 397140 - Branch Manager; Ray Sciberras.
