V10 Interlocking Flat Clay Roofing Tile

All New V-10 is double interlocking flat clay roofing tile, perfect for all types of projects.


  • Length ~ 415.5mm
  • Width ~ 303.2mm
  • Gauge ~ 225mm to 250mm
  • Minimum roof pitch ~ 17.5°
  • Maximum roof pitch ~ 90°
  • Number of tiles per m2 ~10.3
  • Weight per tile ~ 3.66kg
  • Weight per m2 (min.) ~ 36kg
  • Batten size ~ 50mm x 25mm


Close up (Hover cursor over image)

V10 Interlocking Flat Clay Roofing Tile

The double interlocking V-10 clay roof tile is the result of combining two small-format tiles into a single tile with its mock bond feature. This major technical innovation offers both the good looks of small tiles and the rapid installation of large format tiles.

This 2 in 1 tile is the result of different technical aspects which we judge to be indispensable to the installation and durability of a roof. Once installed, the appearance of the double V-10 is very similar to that of a plain tile. It offers all the quality and durability of our interlocking tiles. Moreover, thanks to its side interlocks and its invisible outlets, it offers outstanding water tightness and can be installed at roof pitches as low as 17.5°.

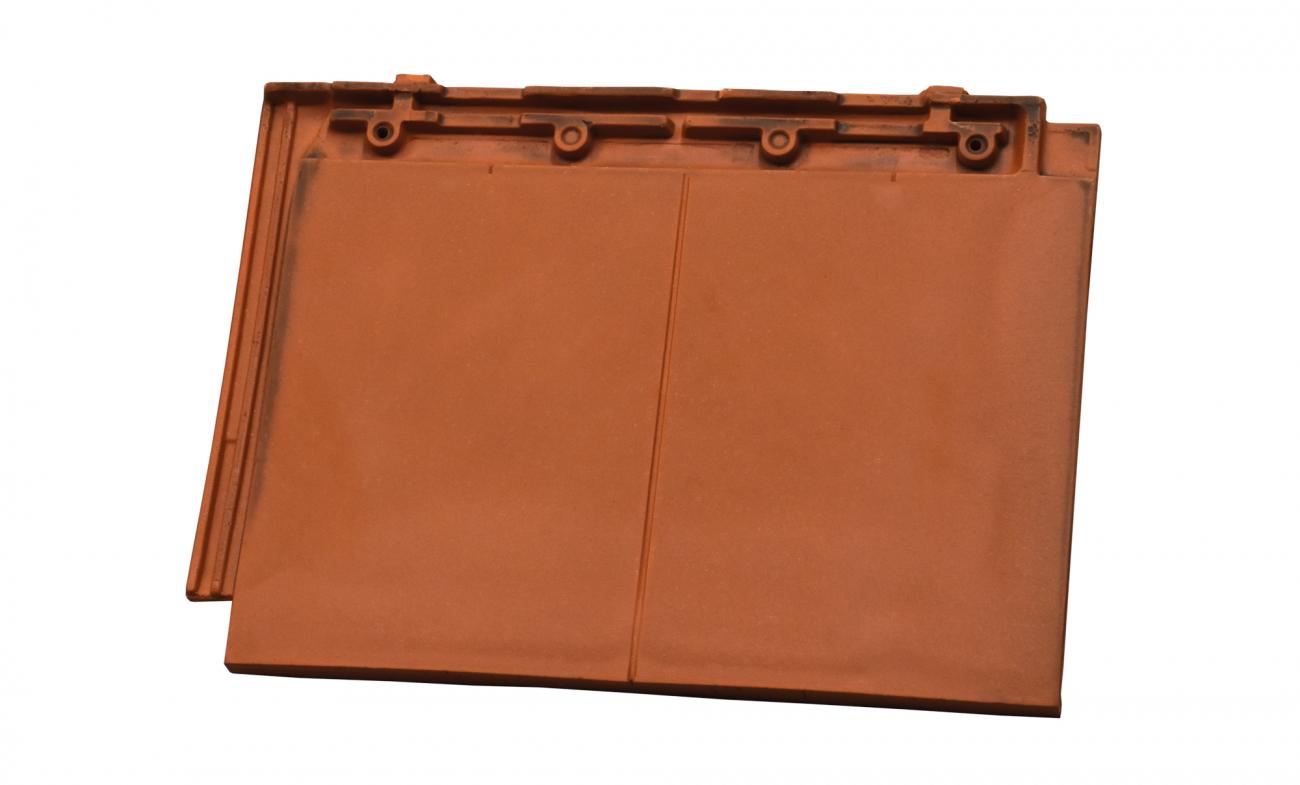

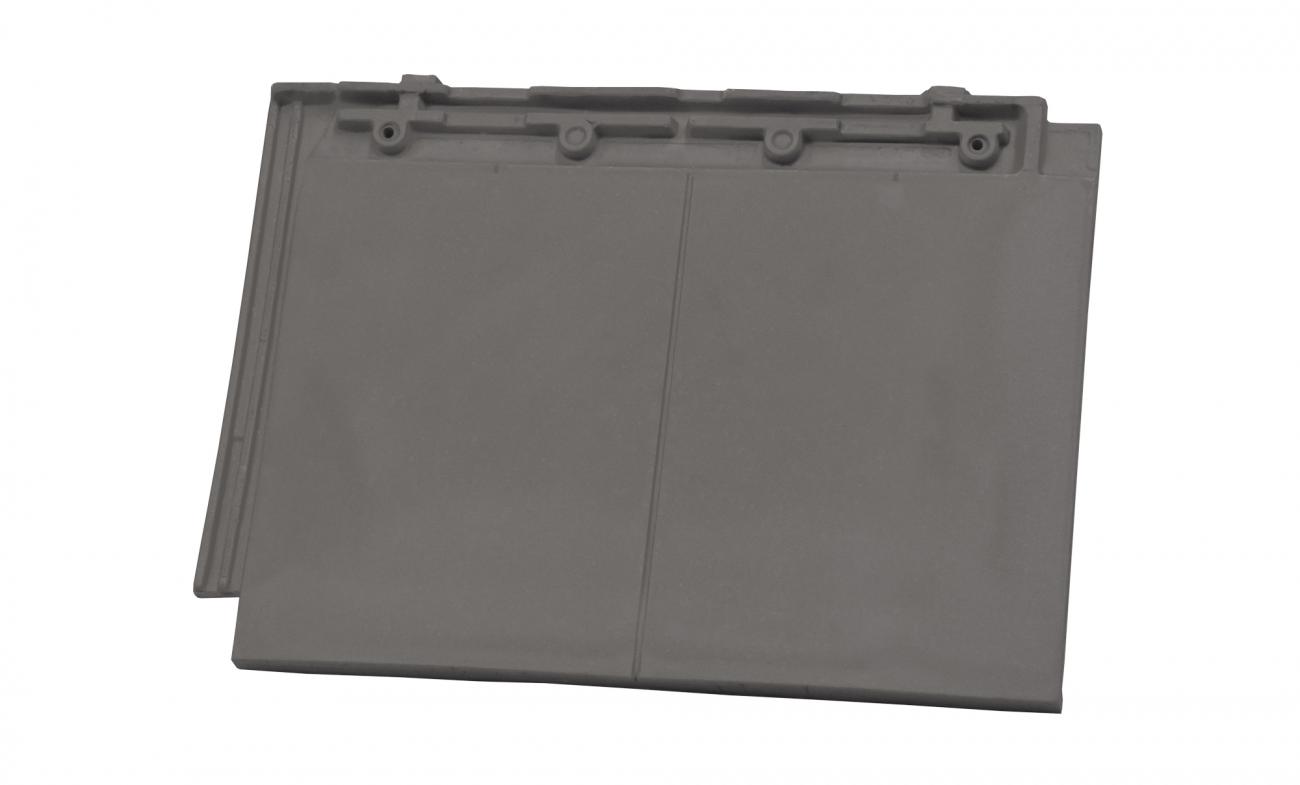

The V-10 is available in Natural Red, Toscana, Matt Black and Blue Reduced, however more colours are been developed, and it also comes with a range of fittings and fixings.

  • High-quality clay
  • Minimum roof pitch 17.5°
  • Only 10.3 tiles per m2
  • Long term durability
  • Eco friendly
  • Low maintenance
  • Wide range of fittings
  • Quick, easy & secure installation

All sizes are approx. Tolerances according to DIN EN 1304. Covering sizes are to be determined on-site.
Subject to technical changes. Site-specific fixing specifications are available on request.

Please note: Mix tiles from at least 3 different pallets of tiles when loading out.
