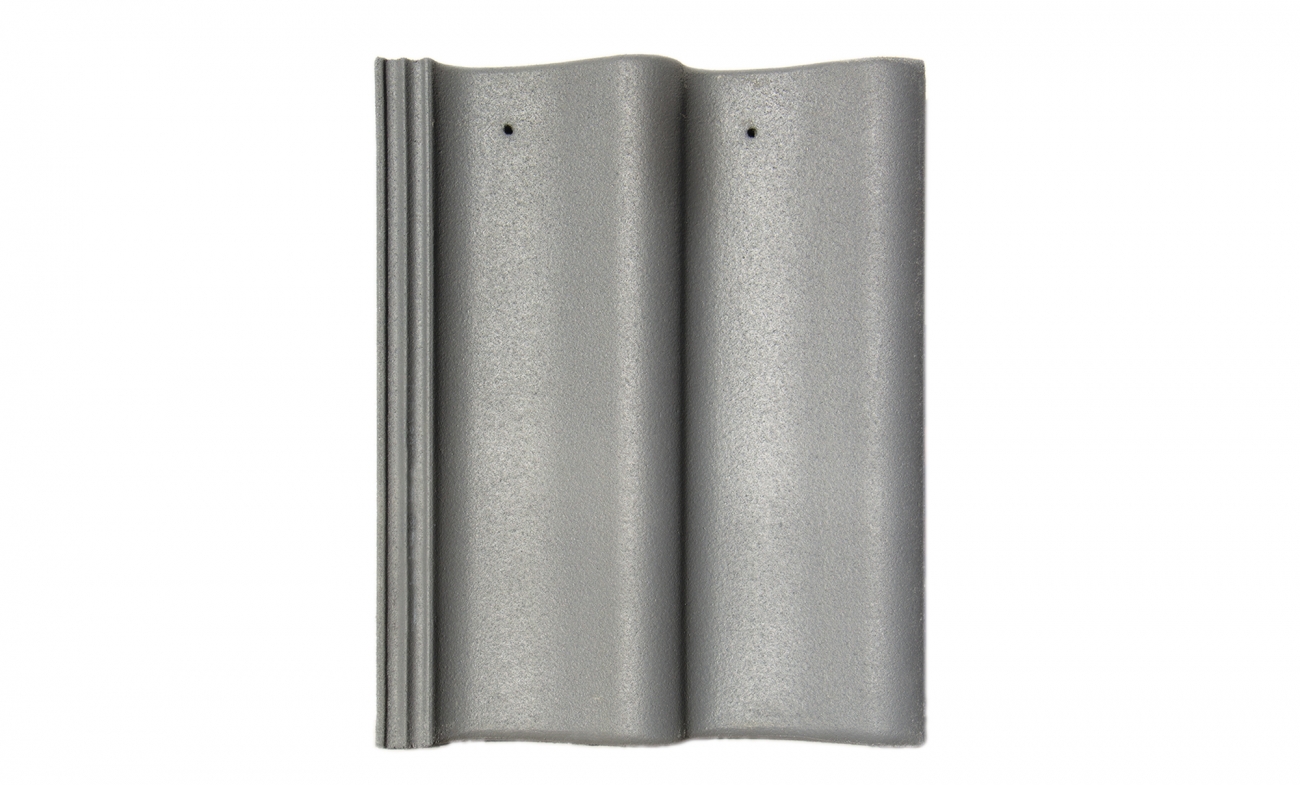

The Double Pantile Concrete Tile

Our Nelskamp Concrete Tiles really do have the ‘EDGE’ over other tiles! The Crest Double Pantile along with The Planum Concrete and Double Roman raise the bar for concrete tiles…

Specification

  • Length ~ 420 mm.
  • Width ~ 332 mm.
  • Gauge ~ 310mm to 345 mm.
  • Covering Width ~ 300 mm ± 2.0 mm.
  • *Minimum roof pitch ~ 15º
  • Number of tiles per m² ~ 9.7
  • Weight per tile ~ 4.4kg.
  • Weight per m2 (min.) ~ 44kg

For further details on Low Pitched Roofing Advice please download the PDF below.

Close up (Hover cursor over image)

The Double Pantile Concrete Tile

The Crest Double Pantile sets a new standard for tiles which everyone from Architects to Roofers appreciate. The Double Pantile is superbly crafted by our partners Nelskamp, with its flowing ‘S’ shape the design is perfectly enhanced by the smoother rounded edge which enhances the finished roof. With a covering capacity of just 9.7 tiles per square metre it also makes the Double Pantile the perfect choice for a very economical and attractive roof.

The Double Pantiles are engineered to the highest of standards and are available in six different colours along with a wide range of fittings.

From traditional clay pantiles to beautiful large formats and superbly crafted glazed tiles we have a very wide choice of roofing materials all proven to enhance any type of project.

  • Superior Quality Double Pantile
  • Ultra Smooth Flat Finish
  • Micro Concrete Surface Technology
  • Cleaner, Smooth Round Trimmed Edges
  • Economical – Only 10 tiles per m2
  • Range of colours and quality fittings
  • Faster, easy and secure installation

Low Pitch Roof Specification 17˚- 15˚

  • Lay Double Pantile straight bond.
  • Headlap minimum 110mm.
  • Use appropriate air and vapour permeable underlay, which does not require secondary roof ventilation.
  • Lay the roof underlay to the manufacturer’s instructions.
  • Maximum rafter length 7.5m.
  • All tiles to be clipped with Crest purpose-made tile clips, reference 409/002. Do not nail the tiles at 17˚ and below.
  • Roof perimeters including, abutments and around roof windows must be securely fixed to BS 5534.
