The *Planum 2 Duo Concrete Flat Tile

The Planum Concrete Tile series sets a new standard for concrete flat tiles which everyone from Architects to Roofers and especially property owners appreciate.


  • Length ~ 420 mm.
  • Width ~ 332 mm.
  • Gauge ~ 320 mm to 340 mm.
  • Covering Width ~ 300 mm ± 2.0 mm.
  • *Minimum roof pitch ~ 17.5º
  • Number of tiles per m² ~ 9.8.
  • Weight per tile ~ 5kg.
  • Weight per m2 (min.) ~ 50kg

For further details on Low Pitched Roofing Advice please download the PDF below.

Close up (Hover cursor over image)

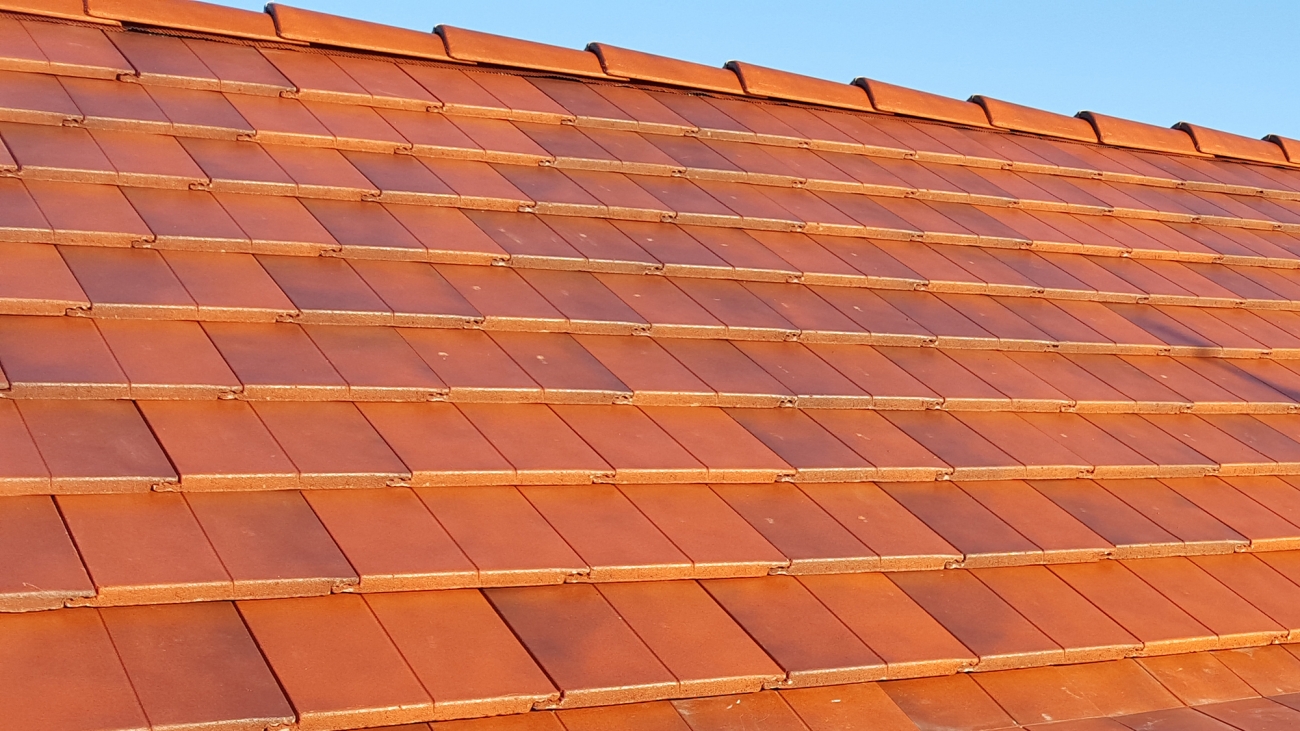

The *Planum 2 Duo Concrete Flat Tile

Here is the Planum Concrete 2 or 'Duo' as we like to call it, technically it is state of the art, it has the same advanced technical properties of the original Planum Concrete tile with ultra smooth flat finish and clean ‘pore-free’ edges to make the finished roof look superb. Where the 'Duo' differs to the Planum Concrete is with the central groove which gives the appearance of a smaller tile on the overall perspective of the finished roof but still retains the Planum Concrete tile technical benefits and cost efficiencies of this large format tile. With a covering capacity of under 9.8 tiles per square metre it makes the Planum Concrete 2 flat tile the perfect choice for a very economical and attractive roof. The Planum Concrete tiles work extremely well in both modern and traditional architecture and are available in six different colours together with a wide range of fittings.

  • Superior quality interlocking flat tile
  • Ultra Smooth Flat finish
  • Eco-friendly Top One finish
  • Clean, Smooth ‘Pore Free’ Edges
  • Economical – Less than 9.8 tiles per m2
  • Range of colours and quality fittings
  • Faster, easy and secure installation

Low Pitch Roof Specification 17˚- 15˚

  • Lay Planum Duo tiles quarter broken bond.
  • Headlap minimum 110mm.
  • Use appropriate air and vapour permeable underlay, which does not require secondary roof ventilation.
  • Lay the roof underlay to the manufacturer’s instructions.
  • Maximum rafter length 7.5m.All tiles to be clipped with Crest purpose-made tile clips, reference 409/202. Do not nail the tiles at 17˚ and below.
  • Roof perimeters including, abutments and around roof windows must be securely fixed to BS 5534.

*As per European trademark Nr.7287956, filed on 2nd October 2008, the Trademark PLANUM belongs to La Escandella. It is Dachziegelwerke Nelskamp as authorized licensee of the owner allowed to use the mark PLANUM for its concrete product.
